There is oxidation and corrosion when metals meet oxygen and water vapor in air. It will greatly damage the metal workpiece and the rust will spread from outside to inside and become worse and worse as time goes on, until the whole workpiece is totally corrupted. So rust removal is extremely important. Laser rust removal uses not chemical agents or mechanical polishing, so it is faster and safer. 100W Fiber Laser rust removal Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced Laser Source, laser optical scanners and Control System to meet the requirements of metal surface cleaning process.
Factory supply laser cleaning machine laser rust removal device
Product Description
Product Description
Model | 100w Laser Cleaner |
Beam pattern | standard: tapered; extended: flat |
Cleaning path | automatic wave path, graph fill path, external import arbitrary path |
Operation mode | automatic, manual |
Laser cleaning focal length | 300mm change the field lens to change the focal length |
Sweep width | 1~ 100mm field lens is changeable and width can be increased |
LCD touch screen | 10.1' touch screen |
Power supply | 110~ 220V, 50/60Hz |
Cooling mode | air cooling |

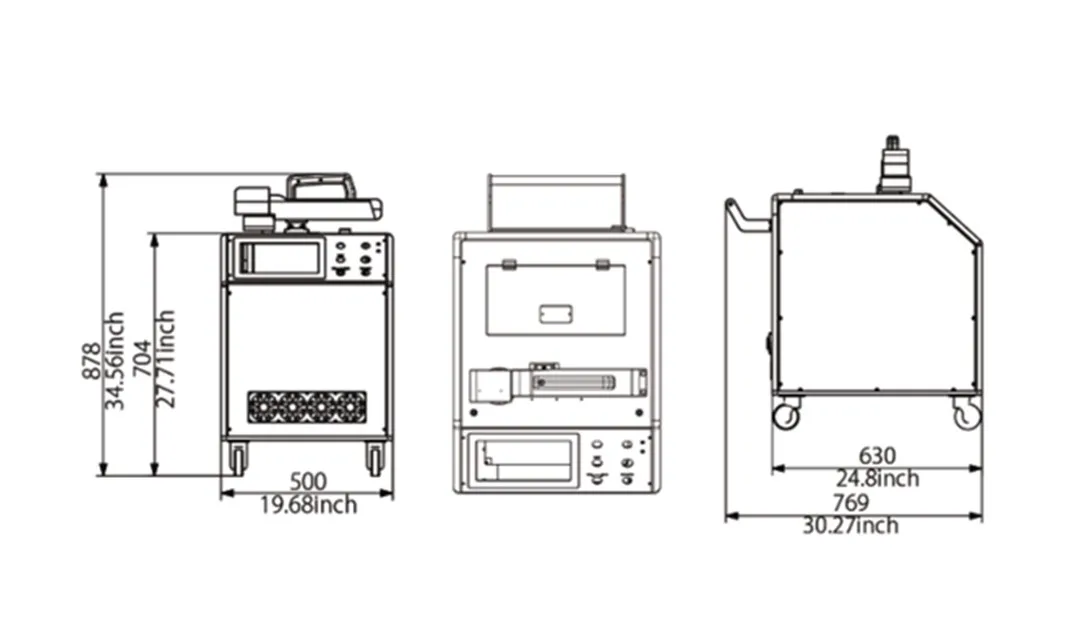

Size | 878*769*500mm |
Weight | 76kg |
Parts | field lens transfer ring, marking focal length positioning bracket, goggles |
Details Images
Introduction
Features
1. fiber laser high power Laser cleaning machine 2. Non-contact cleaning, no damage to the parts matrix. 3. accurate cleaning, can achieve precise location, precise size selective cleaning. 4. do not need any chemical cleaning liquid, no consumables, safe and environmental protection. 5. simple operation, power can be hand-held or with the robot to achieve automated cleaning. 6. cleaning efficiency is very high, save time. 7. Laser cleaning system stability, maintenance-free.Features
Samples
Our Services
Basic service
1. 24 Hours online service per day; 2. 24 months warranty per machine; 3. Lifetime technical service per order.
Extra service:
1. Extra visiting service for laser cleaning machine customer; (Not for ALL customers) 2. Extra regular machine following per laser cleaning machine order; 3. Free of charge transportation insurance per laser cleaning machine; 4. Free of charge for protective products per laser cleaning machine order; 5. 5 years spares parts supply per laser cleaning machine.
Company Profile
Exhibition & Visiting
Packing & Shiping
FAQ
Q1: I do not know about this machine, is it suitable for me to clean my work piece ? A: We will help you and give you the suggestion, you can share us what material of your work piece and what impurity will you clean and the impurity thickness. Q2: When I got this machine, but I don’t know how to use it. What should I do? A: It is very easy to operation. We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training. Q3: If some problems happen to this machine, what should I do? A: We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge ( except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions and help you solve it. Q4: What's consumables of Laser Marking Machine? A:It does not have consumable. It’s very economical and cost effective. Q5: What's package, will it protect the products ? A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film. Q6: What's delivery time? A: Commonly, the lead time is within 5 working days after receiving the payment. Q7: What payment terms can you accept ? A: Any payment is possible for us , like TT , LC, Western Union, Paypal, E-Checking, Master Card, Cash etc. Q8: How is the shipping method ? A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement.
