Jewelry 20W 30W 50W mopa color jpt metal small mini portable 3d rotary galvo fibre 30watt fiber laser marking machine 20w price
Product Description
1. Product description
Fiber Laser Marking Machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. It's very cost effective. It boasts fast marking speed and high marking precision. It's widely used and well accepted in prevailing international market.
2. Key information
Product Type | Fiber Laser Marking Machine |
Marking Material | Both metals and some non-metals Metals: carbonsteel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal andalloy steel (gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) Non-metals: plastics, rubber, resin, carton box, etc. |
Applied Industries | electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts,hardware, tools, building materials, PVC tubes, etc. |
Marking Content | logo, character, serial number, bar code, data matrix |
Main Parts | |
Core Parts & Brand & Lifetime | Core Parts: Fiber Laser Source Brand: IPG, SPI, Raycus, Max, JPT (optional) Lifetime: 100, 000 hours |
Cooling Mode | Air Cooling |
Continuous Working Hours | 22 hours |
Marking Software | English Version Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc. Easy Operation With Powerful Function |
Certification | CE, FDA |
3. Features
4. Main parts introduction
5. Technical parameters
Model | LP-FLM20 |
Laser Power | 20W |
Wavelength | 1064nm |
Fiber Laser Source | IPG, SPI, Raycus, Max. JPT (optional); Lifetime: 100, 000 hours |
Marking Area | Max. 110mmx110mm; Max. 200mmx200mm; Max. 300mmx300mm (optional) |
Min. Line Width | 0.03mm |
Min. Character Size | ≤0.5mm |
Marking Speed | ≤16000mm/s |
Pulse Width | ≤60us |
Repetition Positioning Accuracy | 10urad |
Positioning Way | Red Light |
Power Supply | Single Phase AC 220V, 50/60HZ |
6. Marking samples
7. Packing& delivery
Delivery Time: 5-7 working days after receive the payment.
Package: plywood case.
Transportation Mode: Fiber Laser Marking Machine 30W would be shipped by ocean transportation, air transportation or by express.
8. Our service
Our Service
We provide two-years machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customer's plant for machine repair. We will respond to customer's question within two hours.
Quality Control
Fiber Laser Marking Machine is our core competencies. Quality is our culture. Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse. Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.

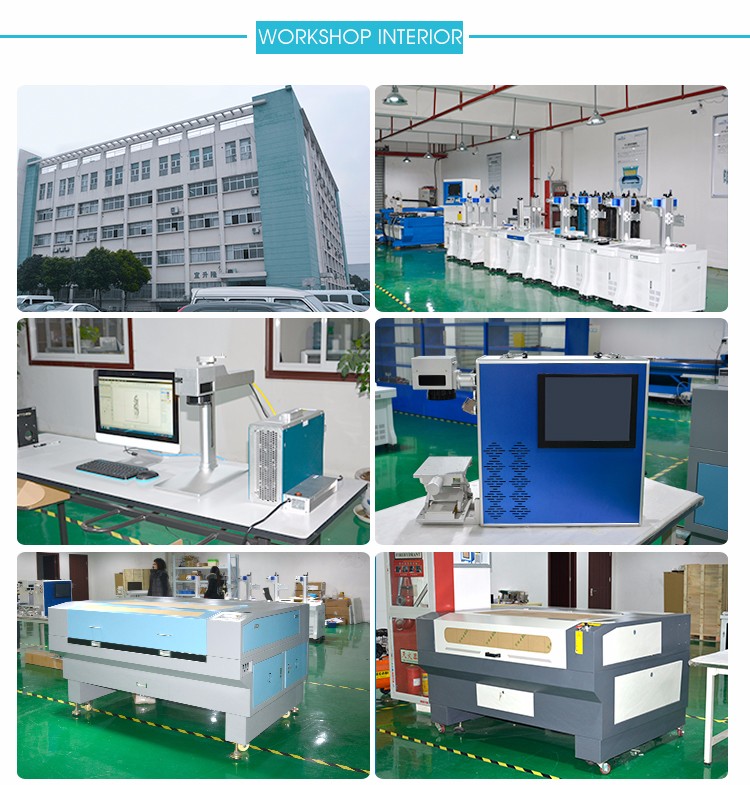

9. Comany information
10. FAQ
Q: How to install the machine?
A: After receiving our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with Fiber Laser Marking Machine 30W before, can still operate it very well. According to customers' requests, we can send our technician to customers' plant for machine training or customers can come to our plant for machine training if needed.
Q: In case machine exists problem, how to do after sales service?
A: We provide one year machine warranty. During one-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 5-7 working days after receiving the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.
